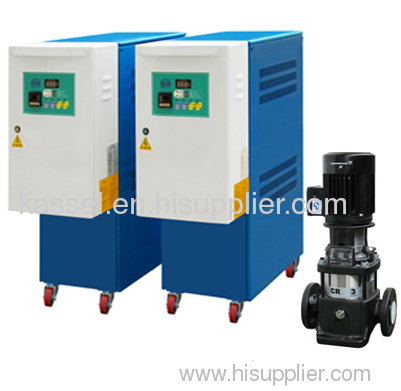

Temperature control for Blow Molding Equipment

Place of Origin:

, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KDDC

Output: Others

Structure: Others

Temperature control for Blow Molding Equipment
1\Hot medium liquid: water or oil convertibly.
2\Vertical pump.
3\Stainless medium tank.

Temperature control for Blow Molding Equipment

Features

·Explosion-proof equipment for pipeline

·Temperature displayer for return water

·Function of forced cooling

·High-strength cooling capacity

·Automatic air-exhausting function after startup

·Switchover of heating power

·RS485 communication function for automated management (optional)

·Instant cooling return oil shut-down function (optional)

·BY-PASS pressure release loop for hot water

·Anti-black carbon disconnecting control box for electrical equipment

·Customizable multi-point temperature control unit

·Customizable horsepower and heating power of water pump

·Direct cooling or indirect cooling (optional)

·Brands OMRON, FUJI, TE and LG for electric appliances

·Range of temperature control: +15℃→98℃ for incoming water

·304 stainless steel integrated pipelines for less pipe resistance and rust

·Control mode: imported microcomputer or PLC (optional)
·Perfect safety protection, fault display, easy repair and maintenance even without professionals

·Application:Temperature control of rubber extrusion unit,Temperature control of tyre parts production line, Temperature control of cable equipment production line, Temperature control of cast film production line, Temperature control of wind-power blade mould, Temperature control of FRP mould ,and etc..

Specifications


Model	Unit	KRD-30	KRD-50	KRD-75			KRD-100
Temp. Range	℃	98℃
Temp. Control Accuracy	℃	PID±1℃
Power Supply		AC3∮380V 50HZ 3P+E(5M)
Heat Transfer Medium		Water
Cooling Method		Direct Cooling(Customizable Indirect Cooling )
Heating Capacity	KW	24/36	40/48	50/60		60/72
Pump Power	KW	2.2	3.75	5.5		7.5
Pump Flow	L/MIN	180	270	348		408
Pump Pressure	Kg/CM2	2.2	2.6	3.1		4
Max. Power Consumption	KW	40	55	68		80
Alarm Function		Open phase/Water Shortage / Overheating /Overloading/Reverse Turn
Cooling Water Pipe	INCH	1/2	3/4		1	1
Circulating Water Pipe	INCH	3/4	3/4		1-1/4	1-1/2
Size(L x W x H)	MM	1150x500x1000	1150x500x1000		1450x500x1350	1450x500x1350
