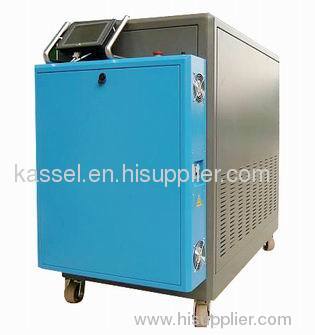

Temperature control for Plastic Blow Molding Machine
·Explosion-proof equipment for pipeline
·Temperature displayer for return water
·Function of forced cooling
·High-strength cooling capacity
·Automatic air-exhausting function after startup
·Switchover of heating power
·RS485 communication function for automated management (optional)
·Instant cooling return oil shut-down function (optional)
·BY-PASS pressure release loop for hot water
·Anti-black carbon disconnecting control box for electrical equipment
·Customizable multi-point temperature control unit
·Customizable horsepower and heating power of water pump
·Direct cooling or indirect cooling (optional)
·Brands OMRON, FUJI, TE and LG for electric appliances
·Range of temperature control: +15℃→98℃ for incoming water
·304 stainless steel integrated pipelines for less pipe resistance and rust
·Control mode: imported microcomputer or PLC (optional)
·Perfect safety protection, fault display, easy repair and maintenance even without professionals
·Application:Temperature control of rubber extrusion unit,Temperature control of tyre parts production line,
Temperature control of cable equipment production line, Temperature control of cast film production line, Temperature control of wind-power blade mould, Temperature control of FRP mould ,and etc..
Specifications
| | Model | Unit | KRD-30 | KRD-50 | KRD-75 | KRD-100 |
Temp. Range | ℃ | 98℃ |
Temp. Control Accuracy | ℃ | PID±1℃ |
Power Supply | | AC3∮380V 50HZ 3P+E(5M) |
Heat Transfer Medium | | Water |
Cooling Method | | Direct Cooling(Customizable Indirect Cooling ) |
Heating Capacity | KW | 24/36 | 40/48 | 50/60 | 60/72 |
Pump Power | KW | 2.2 | 3.75 | 5.5 | 7.5 |
Pump Flow | L/MIN | 180 | 270 | 348 | 408 |
Pump Pressure | Kg/CM2 | 2.2 | 2.6 | 3.1 | 4 |
Max. Power Consumption | KW | 40 | 55 | 68 | 80 |
Alarm Function | | Open phase/Water Shortage / Overheating /Overloading/Reverse Turn |
Cooling Water Pipe | INCH | 1/2 | 3/4 | 1 | 1 |
Circulating Water Pipe | INCH | 3/4 | 3/4 | 1-1/4 | 1-1/2 |
Size(L x W x H) | MM | 1150x500x1000 | 1150x500x1000 | 1450x500x1350 | 1450x500x1350 |
| | | | | | | | |
Specifications above are subject to change without prior notice; some special specifications may be customized
